AirCAT 270 / 400

Inflatable, ultra-portable surface drone with unmatched payload capacity.

Specifications Request a quote



270 version : 2,74 m

400 version : 4 m

270 version : 42 kg

400 version : 53 kg

12-HOUR ENDURANCE

150 KG PAYLOAD

Easy to transport, AirCAT fits into two cases and a bag, all compliant with airline carry-on size standards.

AirCAT – Versatile Surface Drone

AirCAT is an inflatable catamaran-type surface drone designed to operate either via remote control or fully autonomously. With its ultralight weight — just 42 kg for the 270 version and 53 kg for the 400 version — it offers an exceptional payload capacity: up to 150 kg for the 270 version and 180 kg for the 400 version, delivering a weight-to-payload ratio of over 300%.

Caractéristiques Techniques

Model	270 VERSION	400 VERSION
Dimensions	2,74 m x 1,54 m	4 m x 1,98 m
Weight	42 kg	53 kg
Payload	150 kg	180 kg

Stability

Designed for operation in inland waters and open sea conditions up to Beaufort 3.

Endurance

The battery compartment supports 1 to 3 LiFePo4 100Ah batteries, providing an operational range of 4 to 12 hours, including sensor power.

Applications

Thanks to its versatility, AirCAT is ideal for a variety of applications, including:

Hydrographic Surveys (Bathymetry, current profiling, 3D modeling, sediment measurement)
Environmental Data Collection (Physicochemical measurements, wave and wind monitoring, pollution control)
Critical Infrastructure Monitoring

Why choose AirCAT?

AirCAT offers exceptional features:

Unmatched Payload Capacity: Up to 180 kg for the 4 m version, with a unique weight-to-payload ratio in its category.
Ultra-Portable Design: Easily packed into two cases and a bag, compliant with airline carry-on luggage regulations.
Exceptional Navigability: Reliable performance in harsh conditions, with excellent stability up to Beaufort 3.
Cost-Effective Solution: Combining high performance with budget-friendly operations.

Download brochure

Ask for a quote

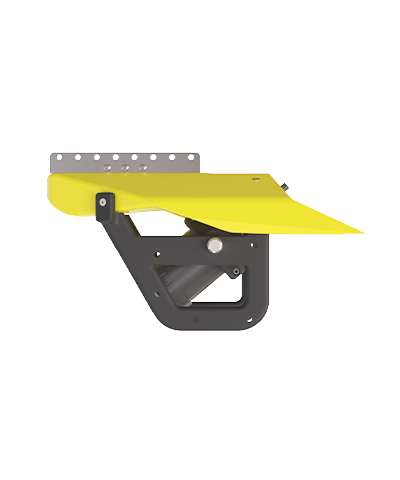

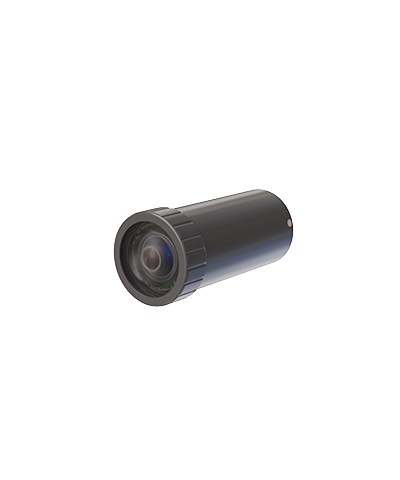

Options and accessories
